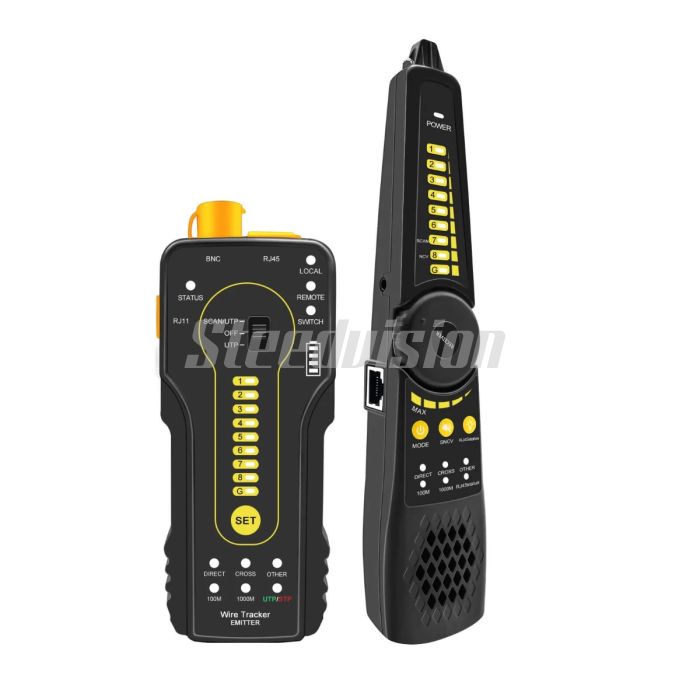

Multi-function Wire Tracker
In stock
- SKU
- ST-66
Choose your location
Delivery options and delivery speeds may vary for different locations.
Cable Tracer and UTP Cable Test
This versatile cable tracer with RJ45, RJ11 and BNC jacks can test a variety of cables, including network cables, coaxial cables and telephone cables. Locate the cable position? Find cable faults? Measure cable length? It can do it all!

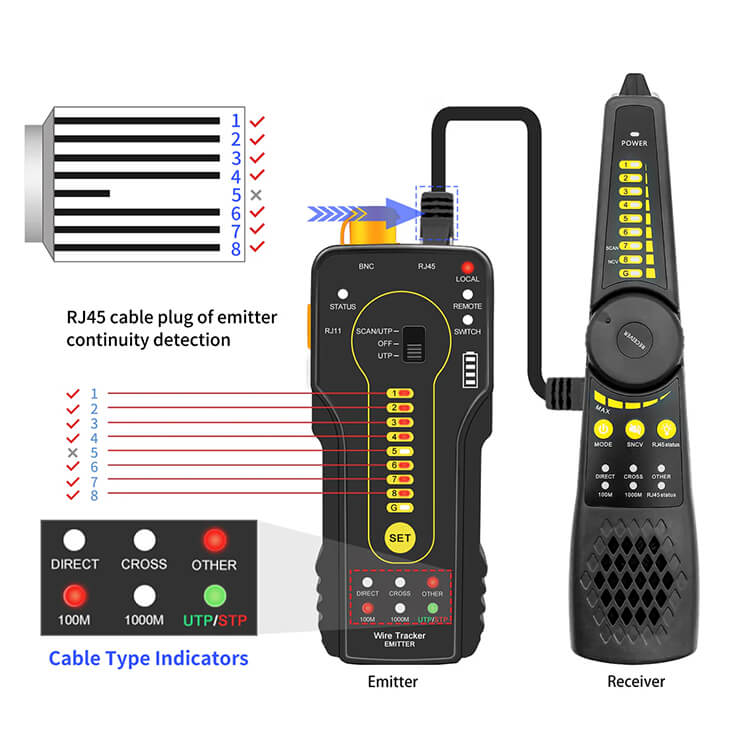

RJ45 Cable Plug Fault Test
Quickly detect the RJ45 port plug status of the Emitter and Receiver.
The status of the RJ45 cable will be displayed directly through the indicator light.

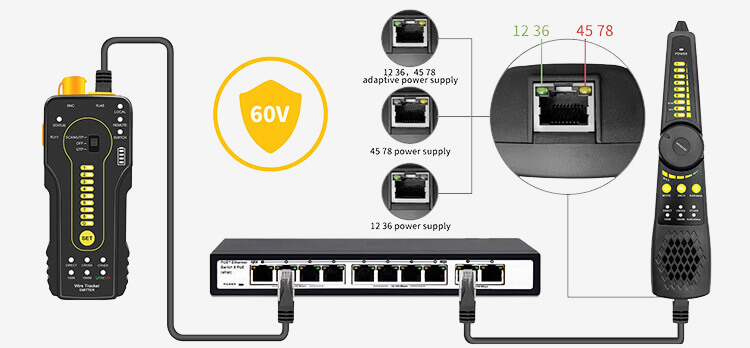

UTP Connected Swtich PD Powered Detection
UTP port support max 60V withstand voltage, the wire can betraced directlyin connection with POE switch.Emitter’s UTPcable sequence indicators will show the stasus.
Detect whether the power output of the POE switch is normal,and detect the pins used for power supply.

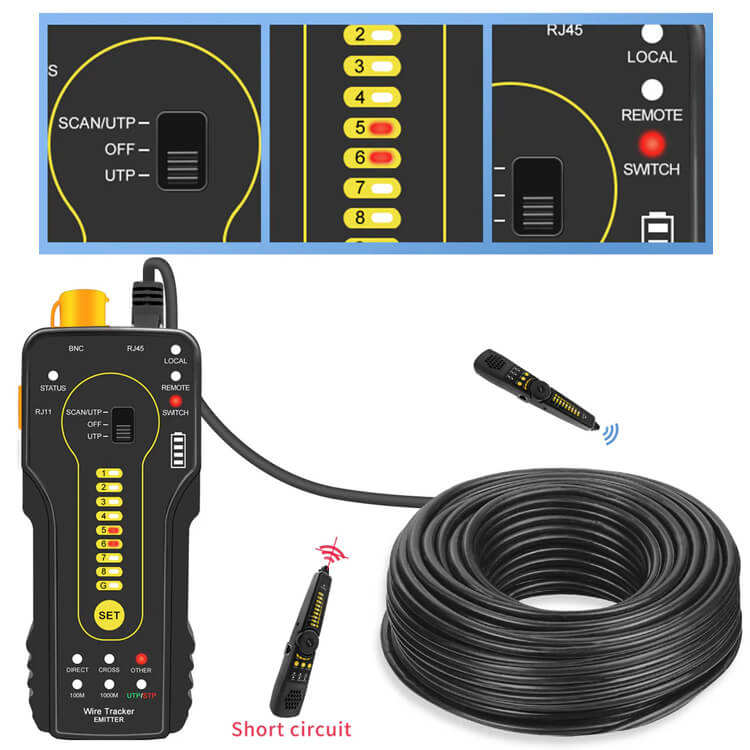

UTP Cable Short circuit Test
Emitter mode: The indicator lights of the short circuit pairs are flashingSwitch mode: The indicator lights of the short-circuit pairs are onAs the cable sequence show, the 5 6 core of cable are short circuit.(The other end of network cable non't connected to receiver)
Applicable to multiple scenarios
Messy Network Cable、RJ45 Plug Fault、Line Short Circuit、UTP POE Switch
Shielding Cable Conntinuity Test
“G” indicator light means the cable is normal the light off means the cable is broken
Telephone Line Status Test
- Indicator light: Off-hooke
- Indicator lighting: Standby
- Indicator flash: Ringing

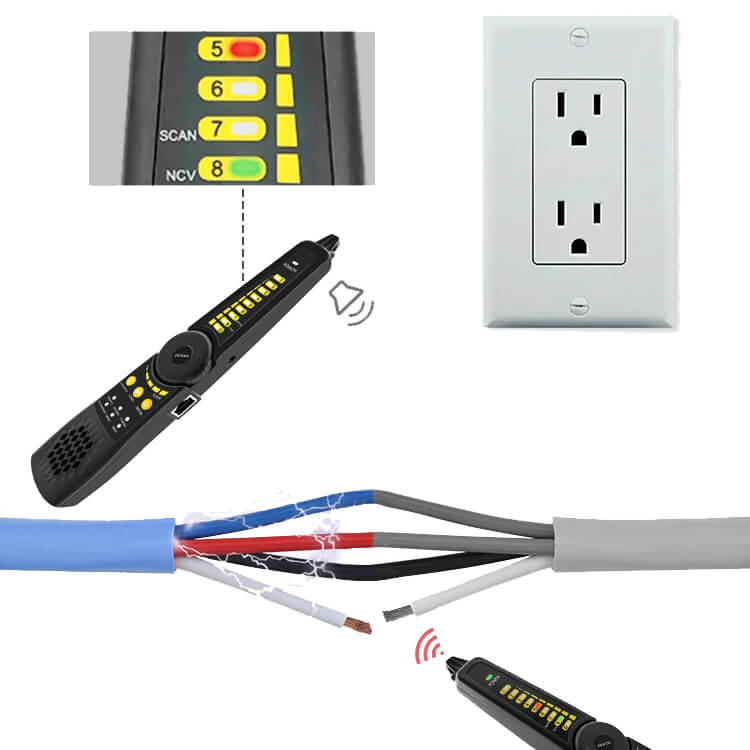

Built-in Electroscope
Non-contact voltage test(NCV Mode)
Identify the neutral wire and live wire

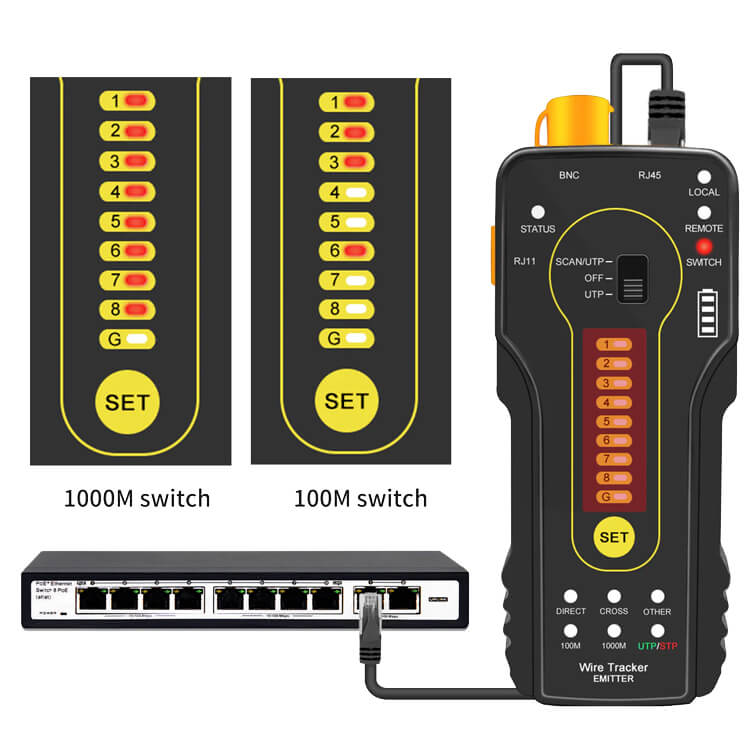

100M/1000M Switch Detection
Specifications
| Product Name | Multi-function Wire Tracker |
| Model | ST-66 |
| Transmit Signal | Digital signal (no interference and no noise) |
| Wire searching material | Support RJ45 twisted pair cable, RJ11 telephone cable, BNC video cable and weak metal cable |
| UTP wire sequence test | 1-8 wire sequence, G shield layer pass-through indicator; network cable type detection: straight-through/crossed/wrong line, the network cable applies to the 100 megabits/gigabits detection; port near-end, mid-end, far-end pass-through detection |
| network cable port pass-through detection | Detecting the ports on both sides of the network cable Each pin pass-through detection |
| PD powered detection | Test PoE switch power supply |
| LED lighting | Short press to turn on/off the LED light |
| Mute mode | Long press the MUTE key to switch the mute mode, through the indicator mute the line search |
| Audio output port | Support external audio output |
| Supply power | 2 AA batteries (not included) |
| Operating temperature | -10'℃~+50C |
| Operating humidity | 30%-90 Dimensions |
| Transmitter Dimension/Weight | 152mm x 62mm x 27mm /0.12KG |
| Receiver Dimension/Weight | 218mmx48mm x 32mm /0.1KG |
