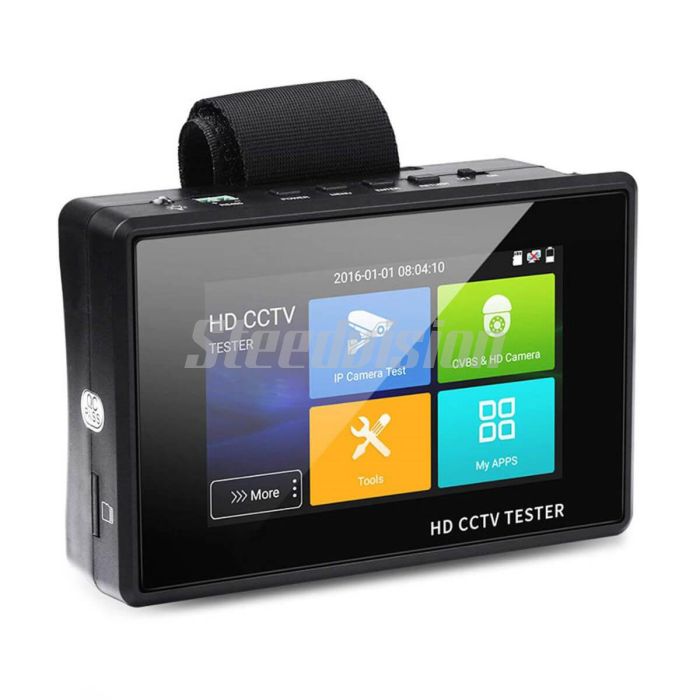

Steedvision IPC-1800ADH Plus Security Camera Tester

Brand	Steedvision
Model	IPC-1800ADH Plus
Display	4 inch IPS touch screen, 800x480 resolution
Network camera test	12MP 4K IP camera test ◉IP discovery: Auto-scan the whole network segment camera IP ◉Rapid ONVIF: Search camera quickly, auto log in and display image from the camera, activate Hikvision camera ◉Hikvision test tool: Activate Hikvision camera, display image from the camera, modify IP, user name and password parameters etc ◉Dahua test tool: Activate Dahua camera, modify IP, user name and password parameters etc
CCTV camera test	◉CVI video signal test: resolution support 720p 25/30/50/60fps, 1920x1080p 25/30fps, 2560x1440p 25/30fps, 2592x1944p 12.5/20fps, 4K 3840x2160p 12.5/15fps, UTC control and call OSD menu ◉TVI video signal test: resolution support 720p 25/30/50/60fps, 1920x1080p 25/30fps, 2048x1536p 18/25/30fps, 2560x1440p 15/25/30fps, 2688x1520p 15fps, 2592x1944p 12.5/20fps, 4K 3840x2160 12.5/15fps, UTC control and call OSD menu ◉AHD video signal test: resolution support 720p 25/30fps, 1920x1080p 25/30fps, 2048x1536p 18/25/30fps, 2560x1440p 15/25/30fps, 2592x1944p 12.5/20fps, 4K 3840x2160 15fps, UTC control and call OSD menu ◉CVBS Analog video test: 1 channel BNC Input , NTSC/PAL (Auto adapt)
Power output	◉Output DC12V/3A power to camera ◉48V PoE power output, IEEE802.3af/at, max power 25.5W
Network funtion	◉1x RJ45 interface, 10/100/1000M auto adjust ◉Built in WIFI,speeds150M,display wireless camera image
Audio test	1 channel audio signal input
Other funtion	◉RJ45 TDR cable test: RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation reflectivity, impedance, skew and other parameter. UTP Cable tester ◉PTZ control:Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc ◉Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal ◉Network test: IP address scan, link scan, and Ping test. Quickly search the for IP camera’s IP address on your network ◉Test UTP cable connection status and display on the screen. Read the number on the screen Cable tracer*(Optional) NOTE: This is an Optional function. You need to purchase the WT255 cable tracer hardware separately and add the "cable tracer" APP before can be used.
Power supply	DC 12V/1A
Battery	Built-in 7.4V Lithium polymer battery ,2400mAh, 17.76Wh. After charging 4~5 hours, normal working time 8 hours.
Language	English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Working environment	◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉) ◉Working Humidity: 30% to 90%
Dimension/Weight	126x83x33mm, 0.32kg / (4.96x3.27x1.3inch, 0.7lbs)

Brand

Steedvision

Model

IPC-1800ADH Plus

Display

4 inch IPS touch screen, 800x480 resolution

Network camera test

12MP 4K IP camera test
◉IP discovery: Auto-scan the whole network segment camera IP
◉Rapid ONVIF: Search camera quickly, auto log in and display image from the camera, activate Hikvision camera
◉Hikvision test tool: Activate Hikvision camera, display image from the camera, modify IP, user name and password parameters etc
◉Dahua test tool: Activate Dahua camera, modify IP, user name and password parameters etc

CCTV camera test

◉CVI video signal test: resolution support 720p 25/30/50/60fps, 1920x1080p 25/30fps, 2560x1440p 25/30fps, 2592x1944p 12.5/20fps, 4K 3840x2160p 12.5/15fps, UTC control and call OSD menu
◉TVI video signal test: resolution support 720p 25/30/50/60fps, 1920x1080p 25/30fps, 2048x1536p 18/25/30fps, 2560x1440p 15/25/30fps, 2688x1520p 15fps, 2592x1944p 12.5/20fps, 4K 3840x2160 12.5/15fps, UTC control and call OSD menu
◉AHD video signal test: resolution support 720p 25/30fps, 1920x1080p 25/30fps, 2048x1536p 18/25/30fps, 2560x1440p 15/25/30fps, 2592x1944p 12.5/20fps, 4K 3840x2160 15fps, UTC control and call OSD menu
◉CVBS Analog video test: 1 channel BNC Input , NTSC/PAL (Auto adapt)

Power output

◉Output DC12V/3A power to camera
◉48V PoE power output, IEEE802.3af/at, max power 25.5W

Network funtion

◉1x RJ45 interface, 10/100/1000M auto adjust
◉Built in WIFI,speeds150M,display wireless camera image

Audio test

1 channel audio signal input

Other funtion

◉RJ45 TDR cable test: RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation reflectivity, impedance, skew and other parameter.
UTP Cable tester
◉PTZ control:Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
◉Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal
◉Network test: IP address scan, link scan, and Ping test. Quickly search the for IP camera’s IP address on your network
◉Test UTP cable connection status and display on the screen. Read the number on the screen
Cable tracer*(Optional)
NOTE: This is an Optional function. You need to purchase the WT255 cable tracer hardware separately and add the "cable tracer" APP before can be used.

Power supply

DC 12V/1A

Battery

Built-in 7.4V Lithium polymer battery ,2400mAh, 17.76Wh.
After charging 4~5 hours, normal working time 8 hours.

Language

English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Working environment

◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉)
◉Working Humidity: 30% to 90%

Dimension/Weight

126x83x33mm, 0.32kg / (4.96x3.27x1.3inch, 0.7lbs)
