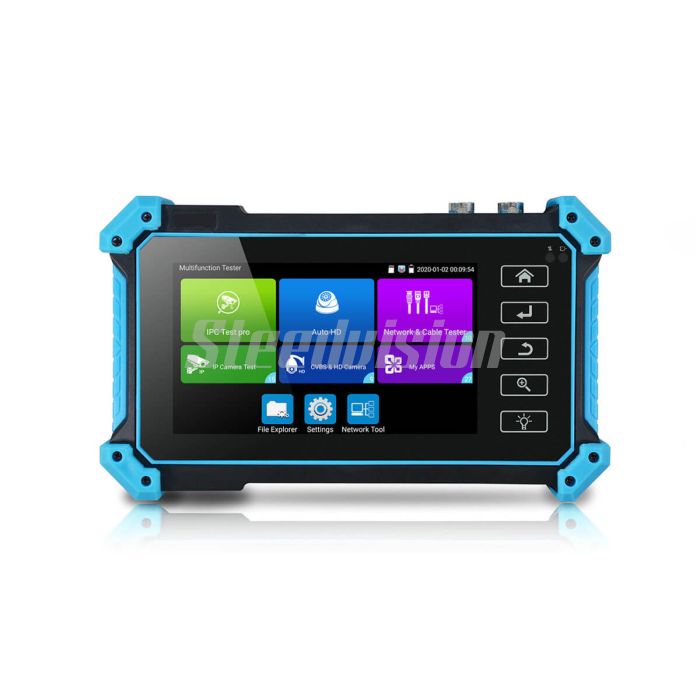

Steedvision IPC-5200 Plus 4K Security Camera Tester

12MP 4K, IP camera test, H.265/H.264
◉IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK
◉Rapid Video: Auto view the video, create testing report
◉For HIKVISION test tool:
support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
◉For DAHUA test tool:
support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name.
◉For Axis test tool amd others brand camera test:
After the tester connects to the network, install the dedicated test tool APP of the corresponding brand through online update. Brands that do not have a dedicated test APP can be tested through the test pro tool.

HD Coaxial test
◉8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu
◉8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu
◉8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu
◉8MP EX-SDI, HD-SDI, 3G-SDI camera test: UTC control / call OSD menu
◉Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu
CVBS camera test
◉1 channel BNC input, NTSC/PAL (Auto adapt)
◉PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

◉HDMI input: 1 ch HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/
1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc
◉VGA input: 1 ch VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / (1600x1200P/900P 60FPS) / 1440x900P 60FPS / 1360x768P 60FPS / (1280x1024/960/800/768/720P 60FPS) / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS.

◉DC output: DC12V/3A power output, supply temporarily power for the camera
◉POE output: Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W

◉UTP cable test:
Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
◉RJ45 TDR cable test:
Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M.

Built in Wi-Fi, speeds 150M, Only support 2.4GHz. display wireless camera image, create WIFI hotspot.

1 channel audio signal input, test whether sound normal.

◉Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back
◉Tester Play: Screen projection: Tester, mobile phone and PC display at the same time (only for android version mobile phone)
◉Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test
◉Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal.
◉TF card: Suport up to 32GB, item not include TF card
◉Auto off: 1 to 30 (mins)

Built-in 7.4V Lithium polymer battery, 3350mAh, 24.79W/h. After charging 3-4 hours, normal working time 5-8 hours

English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉)
◉Working Humidity: 30% to 90%

◉Tester:183x110x36.5mm(7.2x4.33x1.44inch) / 0.4kg(0.88lb)
◉Package Dimension: 260x143x100mm(10.24x5.63x3.94inch) / 1.05kg(2.31lbs)

1 x Tester
1 x Tool box
1 x Power adapter
1 x Cable test box
1 x Power output cable
1 x BNC video cable
1 x RS485 cable
1 x Audio Test cable
1 x Shoulder Strap
1 x Wristband
