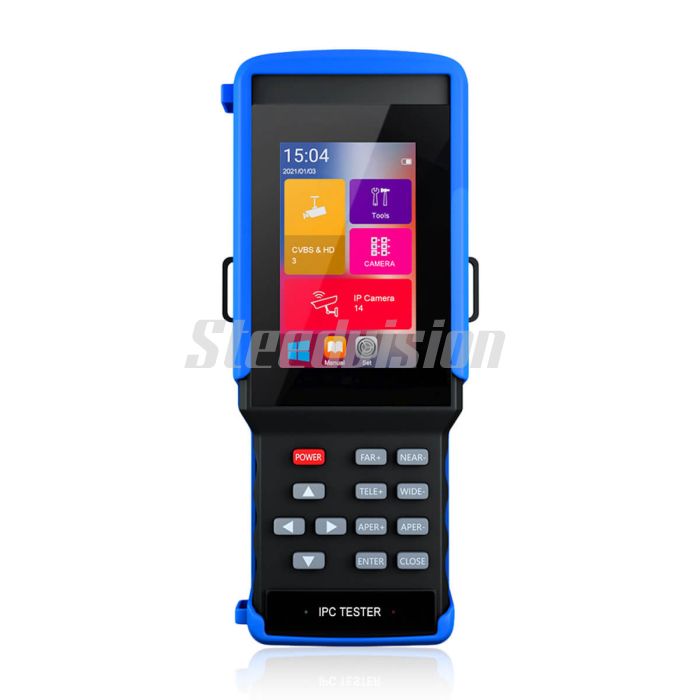

Steedvision IPC-9310 Plus 4K Security Camera Tester

◉Support H.265/H.264/MPEG4 network IP camera test, hardware decoding,support max 4K 12MP camera test.
◉IP full network segment detection, ultra-fast ONVIF, network IP camera one-click image;
◉New Hikvision test tool, support batch activation, batch modify IP address, modify user name and password and other parameters, add custom modify channel name, camera time can be customized position display, more convenient.   Restored factory Settings.
◉New Dahua test tool, support batch activation of Dahua camera, batch modify IP address,reserve email for password recovery,add custom modify channel name,user name and password etc.
◉Support IPC private protocol testing of more than 80 network camera manufacturers such as Dahua, Hikvision,ACTi and Samsung; Support others Brand camera private agreement customization tools, XM(CMS), Unv, Jovision, Topsee, Tiandy, JCO/Danale,TP-Link, Hanbang High-tech, EZVIZ. Support 95% the market brand network camera IP address modify, channel name modify;
◉Virtual ONVIF camera function, which can be used the tester as a virtual camera to connect to NVR and test it.
◉Support lens calculation, image quality calculation, convenient camera focus;
◉One screen dual display, support network camera and analog camera testing at the same time;
◉Support network PTZ control function (via ONVIF),gesture up,down,left and right sliding,control the PTZ camera.
◉Network integration tools, IP address scan, PING, DHCP services, network port flicker, PPPoE dialing function test, advanced link test, routing track, bandwidth test, Socket debugger and generic security tools.
◉Support network video stream RTSP playback, the maximum support 12MP video stream playback;

◉1 CVBS analog input, support PAL/NTSC standard self-adaptation. Analog CVBS video image display, PTZ control, image magnification, snapshot, video recording and playback functions;
◉Support coaxial HD 4.0, TVI8MP, CVI8MP, AHD8MP camera image test, coaxial video control and menu call, support snapshot,video recording, image zoom, playback;

1 HDMI output, supporting up to 1920 x 1080

◉Max DC12V/3A power output, short circuit protection, overcurrent protection;
◉Standard PoE IEEE802.3af power supply output, DC48V, maximum 25.5W;
◉Support 12V, PoE power supply power detection.
◉PSE switch voltage, supply line sequence, power detection.

network cable sequence on and off test, host intuitive display network cable sequence state

◉Network interface: RJ45 Gigabit Ethernet ports, 10/100/1000Mbps adaptive
◉Wi-Fi: Built in WIFI, 2.4GHz, speeds150Mbps

◉Support for more than forty protocols such as Pelco-D/P, Samsung, Panasonic, etc.
◉Screen projection function, which can be used to scan the QR code of Android or iPhone to view  the Project Treasure screen directly and support multi-player coordination.
◉Flashlight, calculator, music player, video player and other application tools;
◉Application software can support upgrade update when the tester connect network;
◉The tester image can be rotated 180 degrees to facilitate the connection of the network cable and the power cable;
◉Support file management, a variety of file copy, FTP server
◉Support RS485 debugging tool;

Built-in 7.4V polymer potassium battery, capacity 3200mAh, can be used continuously for 8-10 hours

English

◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉)
◉Working Humidity: 30% to 90%

◉Tester: 23 x 9.2 x 4.1 cm

1 x Camera tester
1 x Tool Bag
1 x Power adapter
1 x TDR test cable
1 x Power output cable
1 x BNC video cable
1 x RS485 control cab
