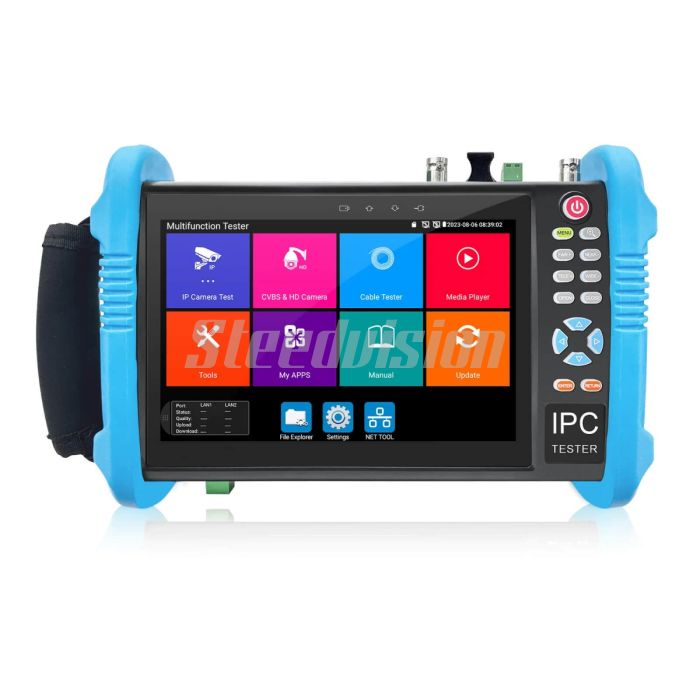

Steedvision IPC-9800ADH Pro+ 8K Security Camera Tester

7" IPS Touchscreen CCTV Tester: 8K 32MP IP & 8MP TVI/CVI/AHD + CVBS Testing | HDMI Input & Output / VGA Input / Analog Video Output | PoE++ 90W & USB Power Output | Built-in Wi-Fi | Gigabit SFP Port | Optional Cable Tracker

In stock

SKU
IPC-9800ADH Pro+
$479.00
$299.00
Deliver to:
Free Shipping
Shipping options not yet available online. 💬 Chat with us for delivery details.

The IPC-9800ADH Pro+ is a professional-grade, all-in-one CCTV field tester designed for installers, technicians, and security integrators who demand speed, precision, and versatility. Powered by Android 11.0 on a quad-core 2.0GHz processor with 1GB RAM and 8GB storage, this 7-inch IPS touchscreen device (1280×800 resolution) delivers smooth performance and crystal-clear visuals for comprehensive camera testing, network diagnostics, and cable verification—all in one rugged handheld unit.



Advanced Camera Testing Capabilities

  • IP Camera Support: Test up to 8K (32MP) IP cameras with full H.264/H.265 decoding via mainstream streams.
  • Brand-Specific Tools: One-key activation for Hikvision and Dahua cameras—easily modify IP, username, and password directly on the device.
  • Multi-Protocol HD Analog Support: Full compatibility with 8MP TVI, CVI, and AHD cameras (up to 4K@15fps), including UTC control, OSD menu access, and coaxial audio.
  • CVBS Testing: Includes BNC input/output, NTSC/PAL auto-detection, video level meter, color bar generator, and loop test for analog cable verification.
  • Dual-View Mode: Simultaneously test IP and CVBS cameras or verify analog-to-digital converters with split-screen functionality.


Professional Video I/O & Display

  • HDMI Input: Supports 4K@30fps for live video monitoring.
  • HDMI Output: Outputs 4K@60fps—ideal for client demos or large-screen review (dual output modes available).
  • VGA Input: Accepts 1080p@60Hz signals for legacy system integration.
  • Analog Video Output: Built-in PAL/NTSC color bar generator for monitor and cable testing.


Powerful Power Delivery

  • PoE++ (90W): Industry-leading 55V PoE++ output powers even the most demanding PTZ and multi-sensor cameras.
  • Flexible DC Outputs:
    • DC12V/3A for standard cameras
    • DC24V/2A for speed domes
    • USB 5V/2A power bank function for mobile devices


Network & Fiber Connectivity

  • Dual Gigabit Ethernet Ports: For advanced network diagnostics (Ping, Traceroute, DHCP, Link Monitor, Port Flashing).
  • Built-in Wi-Fi (2.4GHz, 150Mbps): Wireless network access and remote control.
  • Gigabit SFP Port (NEW!): Insert optional SFP modules for fiber optic network testing—perfect for long-distance installations.


Cable & Signal Diagnostics

  • RJ45 TDR Cable Tester: Measures cable length (up to 180m), impedance, attenuation, skew, and pair faults.
  • UTP Cable Tester: Instantly verifies wiring continuity with on-screen pin mapping.
  • Optional Cable Tracer (WT255 sold separately): Locate and trace hidden cables behind walls or in bundles.


Audio & Data Tools

  • Audio Input/Output: Test microphone and speaker functionality with real-time audio monitoring via headphone jack.
  • Data Monitor: Capture, analyze, and send hexadecimal command data for deep protocol debugging.
  • PTZ Control: Supports 30+ protocols (Pelco-D/P, Samsung, Panasonic, etc.) via RS485 (600–115200 bps).


Smart Field Features

  • 4x Digital Zoom & Snapshot: Capture, save, and playback images or video clips.
  • Real-Time Power Monitoring: View live voltage, current, and power draw for all outputs (PoE, DC12V, DC24V).
  • Drop-Down Quick Menu: Access PoE toggle, Wi-Fi, IP settings, and HDMI input from any screen.
  • Screen Mirroring: Project your tester’s display simultaneously to an Android phone or PC for team collaboration.


Long-Lasting & Portable

  • 7800mAh High-Capacity Battery: Up to 15 hours of continuous operation after just 3–4 hours of charging.
  • Compact & Rugged: Lightweight (965g) yet durable design for all-day field use.
  • Global Ready: Supports 12+ languages including English, Spanish, French, German, Russian, Japanese, Korean, and more.



Ideal for: Security installers, system integrators, maintenance teams, and surveillance professionals who need a future-proof, multifunctional tool for IP, HD-over-Coax, and analog CCTV systems—now with 8K readiness, PoE++, and fiber support.



Upgrade your toolkit with the IPC-9800ADH Pro+—where innovation meets efficiency in every installation.

Model IPC-9800ADH Pro+
CPU/RAM/ROM 4-core 2.0GHz/1GB(DDR)/8GB(EMMC)
Operating system Android 11.0
Display 7 inch IPS touch screen, 1280*800 resolution
Network camera test

IP camera test Max 8K 32MP

  • IP Discovery/ONVIF/IPC test /RTSP play /Client APK
  • Rapid Video, Auto view the video, create testing report
  • Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
  • Dahua test tool, Dahua camera test, modify the user name, password and IP parameters
  • IP & CVBS test at the same time, converter test from analog to digital with dual test window
CCTV camera test

CVBS

  • 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
  • Analog video level meter, peak video signal level, SYNC signal level, CVBS color bar chroma level measurement
  • PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
  • CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable

Coaxial HD test

  • 8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio
  • 8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu
  • 8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu
  • Don't support SDI camera test
Video input

VGA input: 1 channel VGA input, support 1920x1080P 60fps

HDMI input: 1 channel HDMI input, support 4K 3840x2160P 30fps
Video output

HDMI output: 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details)

Analog Video out: color bar generator：Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
Power output

USB DC5V/2A power output, as a power bank

DC12V/3A power output ,supply temporarily power for the camera

DC24V/2A power output ,supply temporarily power for the speed dome camera

55V PoE++ power output power, max power 90W (NEW)
Cable test

Cable tracer*(Optional function)：N/A
(This feature requires additional purchase of a cable tracer WT255.)

UTP cable test：Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 TDR cable test：Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M.
Digital Multimeter(DMM)

N/A
Optical power meter(OPM)

N/A
Visual fault locator(VFL)

N/A
Video level test

N/A
TDR cable test

N/A
Network funtion

Network interface: RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive

Wi-Fi: Built in WIFI, 2.4GHz, speeds150Mbps

Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test
Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Other funtion

ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing (NEW)

Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal

Power management: View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input.

Drop-down menu: You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface

Tester Play: screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone)
Power supply DC15V/1.6A
Battery

Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh

After charging 3 to 4hours, normal working time 15 hours
Language

English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.
Working environment

Working Temperature: -10℃ to +50℃ (14℉ to 122℉)

Working Humidity: 30% to 90%
Dimension/Weight

Tester: 240x135x35mm(9.4x5.3x1.4inch) / 965g(2.12lbs)

Package: 320x290x100mm(12.6x11.4x3.94) / 2090g(4.61lbs)
Package included

1 x Camera tester
1 x Tool Bag
1 x Power adapter
3 x Shoulder Strap
1 x TDR test cable
1 x Power output cable
1 x BNC video cable
1 x RS485 control cab
1 x Audio test cable
