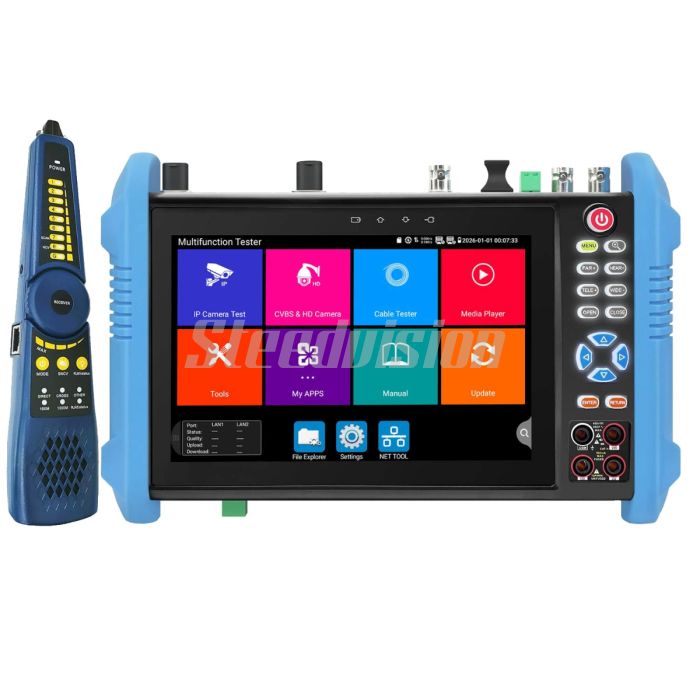

IPC-9800MOVTADHS Pro+: Ultimate 8K Security Camera Tester with SFP and POE++ 90W, support Digital Multimeter, Optical Power Meter, Visual Fault Locator

IP camera test Max 8K 32MP

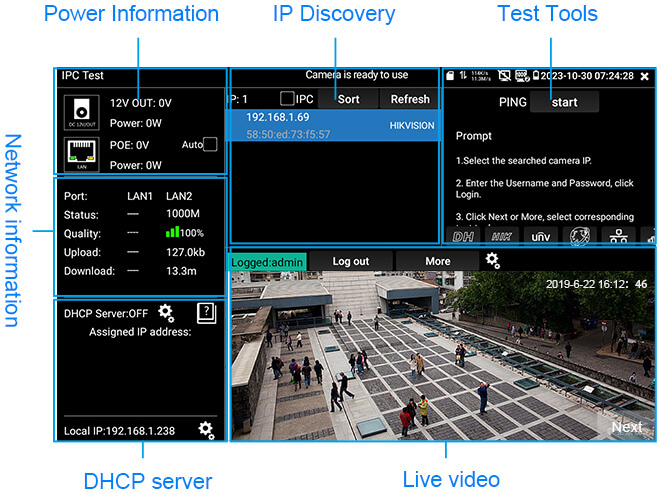

◉IP Discovery/ONVIF/IPC test /RTSP play /Client APK
◉Rapid Video, Auto view the video, create testing report
◉Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
◉Dahua test tool, Dahua camera test, modify the user name, password and IP parameters
◉IP & CVBS test at the same time, converter test from analog to digital with dual test window

CVBS
◉1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

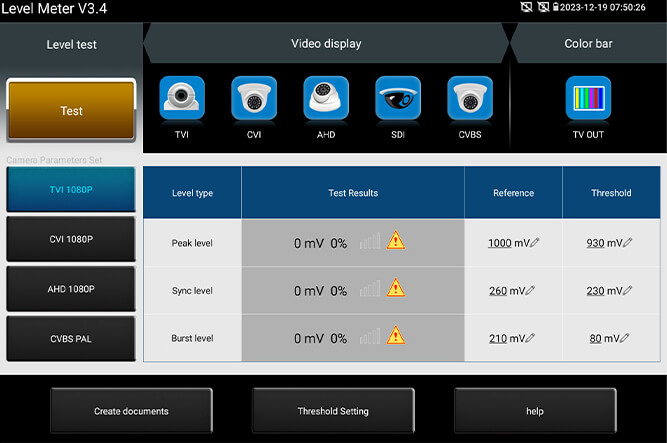

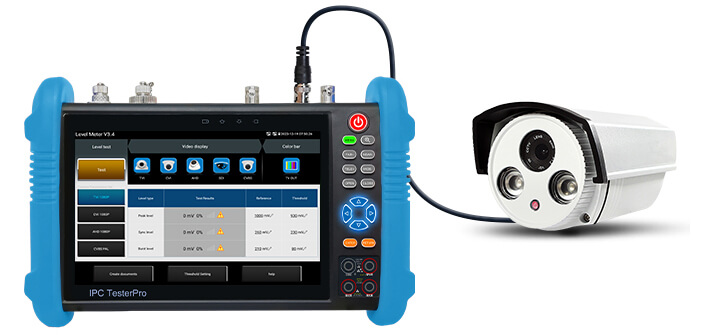

◉Analog video level meter, peak video signal level, SYNC signal level, CVBS color bar chroma level measurement
◉PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
◉CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable
Coaxial HD test

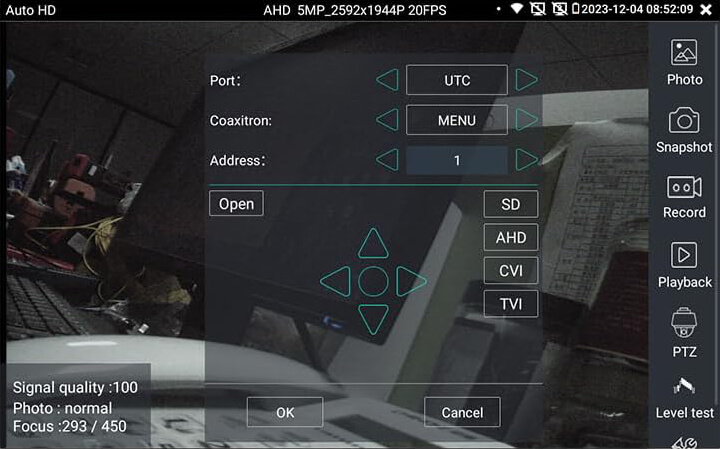

◉8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio
◉8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu
◉8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu
◉8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu

◉VGA input: 1 channel VGA input, support 1920x1080P 60fps
◉HDMI input: 1 channel HDMI input, support 4K 3840x2160P 30fps

◉HDMI output: 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details)
◉Analog Video out: color bar generator：Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

◉USB DC5V/2A power output, as a power bank
◉DC12V/3A power output ,supply temporarily power for the camera
◉DC24V/2A power output ,supply temporarily power for the speed dome camera
◉Standard PoE power output, DC48V, max power 25.5W

◉Cable tracer(Wire Finder)：Contains a digital cable tracer. search BNC cable, network cable and telephone cable from the mess cables.
◉Support AC voltage detector. voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE
◉UTP cable test：Test UTP cable connection status and display on the screen. Read the number on the screen
◉RJ45 TDR cable test：Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M.

DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
DC&AC voltage measurement(V): the highest range is 660V, the accuracy is ±0.3%+4(DC)/±0.8%+6(AC), resolution is 100mV; DC&AC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA; Resistance measurement(Ω): the highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,the Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω; capacitance measurement(F):the highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF,
the Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF; Diode measurement;At the same time, the tester's multimeter can continuity testing. Automatically adjust 0.

Wavelength: 1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range, -70 to +10 dBm, Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃)
Display resolution: Linear display 0.1%, logarithmic display 0.01dBm

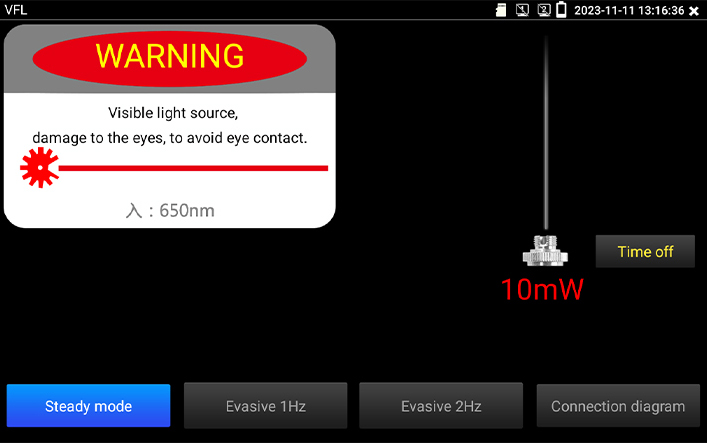

10mW visual fault locator with 650nm wavelength, can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10km(32,808 ft), Connector: Active FC/PC

Analog video level meter, peak video signal level, SYNC signal level*

Measurable cable type: metal cable, include BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1,200m(3,937 ft)

Network interface: RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive
Wi-Fi: Built in WIFI, 2.4GHz, speeds150Mbps
Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

◉Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
◉Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal
◉Power management: View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input.
◉Drop-down menu: You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface
◉Tester Play: screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone)

Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh
After charging 3 to 4hours, normal working time 15 hours

English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.

◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉)
◉Working Humidity: 30% to 90%

◉Tester: 240x135x35mm(9.4x5.3x1.4inch) / 1050g(2.31lbs)
◉Package: 320x290x100mm(12.6x11.4x3.94) / 2500g(5.51lbs)

1 x Camera tester
1 x Tool Bag
1 x Power adapter
3 x Shoulder Strap
1 x TDR test cable
1 x Wire Finder
1 x Power output cable
1 x BNC video cable
1 x RS485 control cab
2 x Multimeter Test cable
1 x Audio test cable
1 x Power output cable
2 x Fiber Optic Test Adapters
