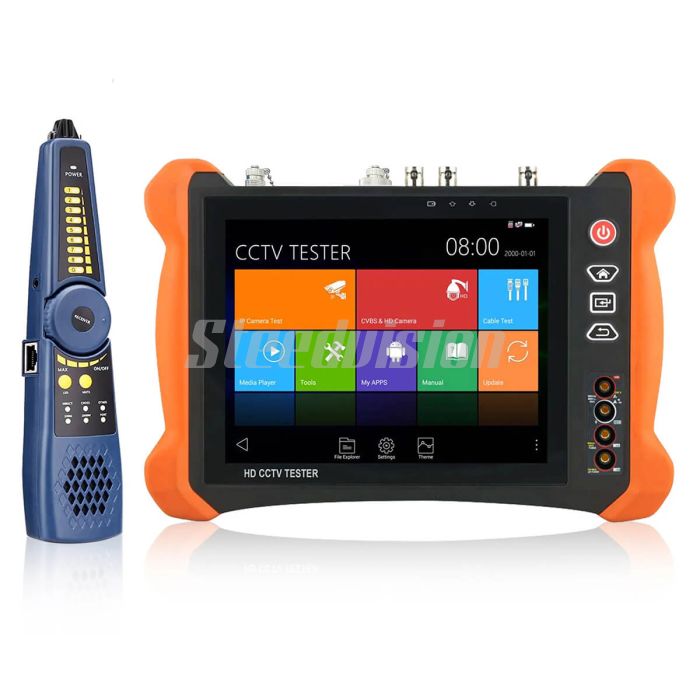

Steedvision IPC-X9-MOVTADHS 8K Security Camera Tester

Max 8K 32MP IP camera test
◉IP Discovery/ONVIF/IPC test /RTSP play /Client APK
◉Rapid Video, Auto view the video, create testing report
◉Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
◉Dahua test tool, Dahua camera test, modify the user name, password and IP parameters

IP& CVBS test
◉IP& CVBS test at the same time, converter test  from analog to digital with dual test window

CVBS
◉1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
◉PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
◉CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable

Coaxial HD test
◉8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio
◉8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu
◉8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu
◉HD SDI2.0: 8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu

HDMI input: 1 ch, support max 4K 3840x2160p/30fps

HDMI output: 1 ch, support max 4K 3840x2160P/60fps

◉DC5V/2A power output, supply some home camera, as a power bank for mobile phone
◉DC12V/3A power Output, supply temporarily power for the camera
◉DC24V/2A power Output, supply temporarily power for the speed dome camera
◉POE output, Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W

◉Cable tracer:
Contains a digital cable tracer. search BNC cable, network cable and telephone cable from the mess cables.
Support AC voltage detector(NVC). voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE
◉UTP cable test:
Test UTP cable connection status and display on the screen. Read the number on the screen
◉RJ45 cable TDR test(software support):
Test cable pair status, length,   attenuation, reflectivity, impedance, skew etc, measurement range 180M.
◉Color bar test:
Support CVI TVI AHD color bar test, max  4K 8MP 15fps. Support CVBS color bar test, NTSC and PAL switchable.

◉DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
DC&AC voltage measurement(V): the highest range is 660V, the accuracy is ±0.3%+4(DC)/±0.8%+6(AC), resolution is 100mV; DC&AC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA; Resistance measurement(Ω): the highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,the Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω; capacitance measurement(F):the highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF,
the Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF; Diode measurement;At the same time, the tester's multimeter can continuity testing. Automatically adjust 0.

◉Wavelength: 1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range, -70 to +10 dBm, Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃)
Display resolution: Linear display 0.1%, logarithmic display 0.01dBm
Connector: Active FC/PC

◉10mW visual fault locator with 650nm wavelength, can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10km(32,808 ft), Connector: Active FC/PC

◉N/A

◉Measurable cable type: metal cable, include BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1,200m(3,937 ft)

◉Network port: RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive
◉Wi-Fi: Built in WIFI, 2.4GHz and 5GHz, speeds:433Mbps
◉Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test

◉1 channel audio signal input, test whether sound normal
◉1 channel audio signal, to connect headphone

◉Zoom Image: 4x zoom, to enlarge image, Screen snapshot ,record, save, view and record and play back
◉Screen projection: Support tester and mobile phone and PC display at the same time (Only for android version mobile phone)
◉RS485: 1 ch, you can easily use it to control cameras and other devices with RS485 interface
◉Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal
◉PoE test: Measurement POE switch or PSE power supply voltage and cable connection status
◉Drop-down menu: You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface

Built-in 7.4V Lithium  polymer battery,7000mAh, 51.8Wh.
After charging 3 to 4 hours, normal working time 15 hours

English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.

◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉)
◉Working Humidity: 30% to 90%

◉Tester: 260x183x43mm(10.24x6.5x1.77inch) / 1200g(2.65lbs)
◉Package: 350x300x100mm(13.78x11.81x3.94) / 2740g(6.04lbs)

1 x Tester
1 x Tool bag
1 x Power adapter
1 x Cable tracer
1 x Power output cable
1 x BNC video cable
1 x RS485 cable
1 x Audio Test cable
2 x Shoulder Strap
