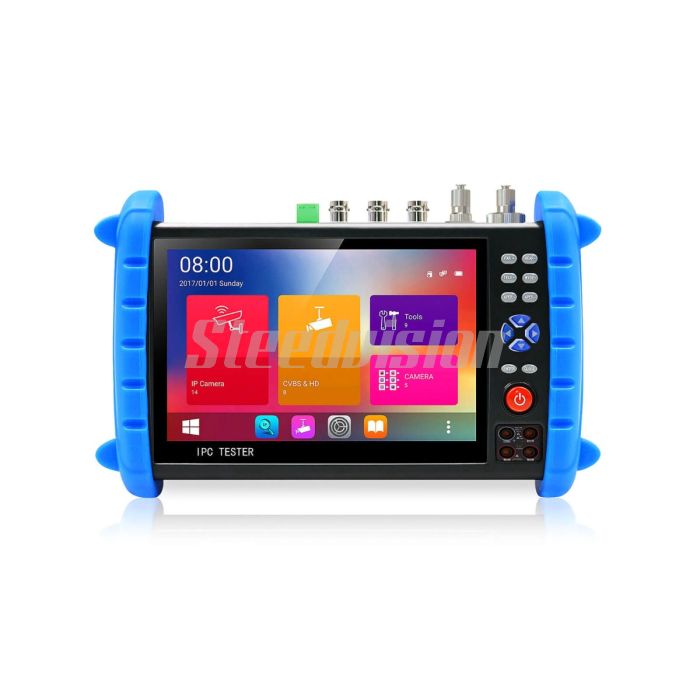

Steedvision IPCXS-ACHIMNORTUV 4K Security Camera Tester

The IPCXS-ACHIMNORTUV is a powerful all-in-one CCTV and IP camera tester featuring a 7-inch IPS touch screen with 1920x1200 resolution. Built on Android 7.1, it supports 4K/H.265/H.264 camera testing, coaxial HD formats (TVI/CVI/AHD/SDI), and advanced network testing with dual Gigabit Ethernet ports and Wi-Fi capabilities. With integrated optical and cable testing tools, multimeter functions, and a robust battery for up to 10 hours of operation, this device is essential for professional security and network technicians. Compatible with brands like Hikvision, Dahua, AXIS, and more, it simplifies setup, testing, and troubleshooting with innovative tools such as one-click activation, cable length measurement, and POE testing.

IPCXS Series Feature Comparison

	IPCXS-U	IPCXS-ACHITU	IPCXS-ACHIMNORTUV
IP camera test	✓	✓	✓
CVBS camera test	✓	✓	✓
AHD camera test	✗	✓	✓
CVI camera test	✗	✓	✓
TVI camera test	✗	✓	✓
SDI camera test	✗	✓	✓
PTZ control	✓	✓	✓
HDMI intput	✗	✓	✓
HDMI output	✓	✓	✓
Digital Multi-meter	✗	✗	✓
Optical power meter	✗	✗	✓
Visual fault locator	✗	✗	✓
TDR Cable	✗	✗	✓
	Buy Now	Buy Now	Buy Now

Brand	Steedvision
Model	IPCXS-ACHIMNORTUV
Operating system	Android 7.1
Display	7 inch IPS touch screen, 1920*1200 resolution
Network camera test	IP camera test, 4K/H.265/H.264 ◉Smart IPC/IP Discovery/Rapid ONVIF/One-click video/RTSP play /Client APK ◉Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters ◉Dahua test tool, Dahua camera test, modify the user name, password and IP parameters ◉Built-in multiple test APPs for other brands of cameras, such as for AXIS, Samsung, TP-LINK, EZVIZ etc.
CCTV camera test	Coaxial HD test ◉max 8MP TVI camera test, 3840x2160p 15fps, coaxial PTZ & call OSD menu ◉max 8MP CVI camera test, 3840x2160p 12.5/15fps,coaxial PTZ & call OSD menu ◉max 8MP AHD camera test, 3840x2160p 15fps, coaxial PTZ & call OSD menu ◉max 8MP SDI camera test,3840x2160p 25/30fps, coaxial PTZ & call OSD menu CVBS ◉1 channel BNC input, NTSC/PAL (Auto adapt)
Video output	HDMI output: 1 channel HDMI output. Support 1920x1080P 60fps
Power output	◉DC5V/2A: USB DC5V/2A power output, as a power bank ◉DC12V/3A: DC12V/3A power output ,supply temporarily power for the camera ◉DC24V/1A: DC24V/1A power output ,supply temporarily power for the speed dome camera ◉PoE: IEEE802.3af/at 48V PoE power output, max power 25.5W
Cable test	Cable test ◉Cable tracer: Include (don't support PD testing) ◉UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen ◉RJ45 TDR cable test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M.
Digital Multimeter(DMM)	◉DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
Optical power meter(OPM)	◉Optical power meter, wavelength: 1625, 1550, 1490, 1310, 1300, 850nm; Power measurement range (dBm): -70 to +10dBm,for Optical power testing and Fiber link loss relative measurement
Visual fault locator(VFL)	◉10mW visual fault locator with 650nm wavelength, can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8km
Video level test	◉BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM
TDR cable test	◉UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen ◉RJ45 TDR cable test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M.
Network funtion	◉Network interface: RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive ◉Wi-Fi: Built in WIFI, 2.4GHz, speeds150Mbps ◉Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test, Scan, IP tools, Network loop, Bandwidth test, Search vendor, WiFi analysis ◉IP tools: Graphical display of used and unused IP addresses within the LAN
Audio test	1 channel audio signal input, test whether sound normal
Other funtion	◉RS485 serial tool: Can accept, send and analyzes the RS485 command data from controlling device, also can send hexadecimal ◉PoE test: Measurement POE switch or PSE power supply voltage and cable connection status ◉Drop-down menu: You can select User manual, CVBS floating window, APP store, File Explorer, Screenshot, LED light switch, Memory card, Brightness adjustment, Volume adjustment, quick access to custom APP etc in any interface ◉Dual test window: IP& CVBS test at the same time, converter test from analog to digital with dual test window ◉Projection: Tester, mobile phone and PC display at the same time (only for android mobile phone)
Power supply	DC 12V/2A
Battery	Built-in 7.4V Lithium polymer battery,7800mAh, 57.72Wh. After charging 4 to 6 hours, normal working time 6 to 10 hours
Language	Chinese(simplified), Chinese(traditional), English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese etc.
Working environment	◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉) ◉Working Humidity: 30% to 90%
Dimension/Weight	250x160x50mm / 950g (9.84x6.3x1.97inch / 2.09lbs)
Package included	1 x Camera tester 1 x Tool Bag 1 x Power adapter 1 x Shoulder Strap 1 x TDR test cable 1 x Cable tracer 1 x Power output cable 1 x BNC video cable 1 x BNC female to RJ45 adapter 1 x RS485 control cable 2 x Multimeter Test cable
