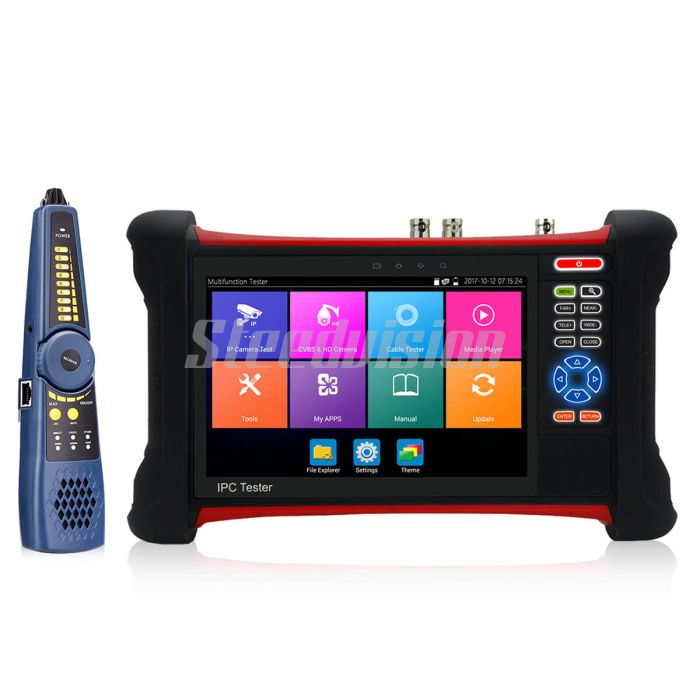

Steedvision IPC-X7-ADHS 8K Security Camera Tester

32MP 8K IP camera test
◉IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
◉Rapid Video: Auto view the video, create testing report
◉For Hikvision test tool:
◉Pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
◉For Dahua test tool:
◉Dahua camera test, modify the user name, password and IP parameters. Support activate and modify IP in batches
◉For Axis test tool:
After the tester is connected to the network, install the special test tool APP "AXS Test Tool" through online update for Axis camera test. Note: When using other apps to test the Axis camera, maybe a prompt that the password is incorrect, even if you enter the correct password.
◉For others Brands camera test:
You can use the "Test pro" or "Ovif" APP to test most IP cameras. Or you can update and install the test APP of the corresponding brand online after the tester connects to the Internet.

IP& CVBS test
◉IP& CVBS test at the same time, converter test  from analog to digital with dual test window

Coaxial HD test
◉Use the "Auto HD" APP to test the coaxial HD camera, which can automatically identify the type of the camera, without manually selecting AHD, CVI, TVI, SDI, CVBS.
◉HD TVI5.0: 8MP TVI camera test, 3840x2160P 15fps, support coaxial audio test, UTC control/call OSD menu
◉HD CVI4.0: 8MP CVI camera test, 3840x2160P 12.5/15fps,UTC control/call OSD menu (3MP CVI camera don't support)
◉HD AHD4.0: 8MP AHD camera test, 3840x2160P 15fps, UTC control/call OSD menu
◉HD SDI2.0: 8MP EX-SDI 3840x2160P 12.5/15fps, HD-SDI 1920x1080P 25/30/50/60fps, 1920x1080i 50/60fps, UTC control & call OSD menu
CVBS camera test
◉1 ch BNC input and 1 ch BNC looped output, NTSC/PAL auto adapt
◉Analog video level meter: N/A
◉PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
◉CVBS loop test, the tester send and receive color bar generator signal, check BNC cable

HDMI input: 1 ch, support max 4K 3840x2160p/30fps

HDMI output: 1 ch, support max 4K 3840x2160p/30fps

◉DC5V/2A power output, supply some home camera, as a power bank for mobile phone
◉DC12V/3A power Output, supply temporarily power for the camera
◉DC24V/2A power Output, supply temporarily power for the speed dome camera
◉POE output, Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W

◉Cable tracer:
Search BNC cable, network cable and telephone cable from the mess cables
◉UTP cable test:
Test UTP cable connection status and display on the screen. Read the number on the screen
◉RJ45 cable TDR test(software support):
Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180m(590 ft).

◉N/A

◉N/A

◉N/A

◉N/A

◉N/A

◉Network port: Dual Gigabit Ethernet Ports, 10/100/1000Mbps adaptive
◉Wi-Fi: Built in WiFi, support 2.4GHz and 5GHz dual-band WiFi. Display wireless camera image, create WIFI hotspot, support WiFi analysis function
◉Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test

◉1 ch audio signal input, test whether sound normal
◉1 ch audio signal output, to connect headphone

◉Zoom Image: 4x zoom, to enlarge image, Screen snapshot ,record, save, view and record and play back
◉Screen projection: Support tester and mobile phone and PC display at the same time (Only for android version mobile phone)
◉RS485: 1 ch, you can easily use it to control cameras and other devices with RS485 interface
◉Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal
◉PoE test: 1 POE port and 1 PSE port. Measurement POE switch or PSE power supply voltage and cable connection status
◉Drop-down menu: You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface

Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh.
After charging 4-6 hours, normal working time 16 hours

English, Chinese, Polish, Korean, Russian, Italian, French, Polish, Spanish, Japanese, German, Portuguese, Serbian, Vietnamese, Czech. etc

◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉)
◉Working Humidity: 30% to 90%

◉Tester: 260x165x45mm(10.24x6.5x1.77inch) / 1000g(2.2lbs)
◉Package: 340x300x100mm(13.4x11.8x3.94) / 2200g(4.85lbs)

1 x Tester
1 x Tool bag
1 x Power adapter
1 x Cable tracer
1 x Power output cable
1 x BNC video cable
1 x RS485 cable
1 x Audio Test cable
2 x Shoulder Strap
