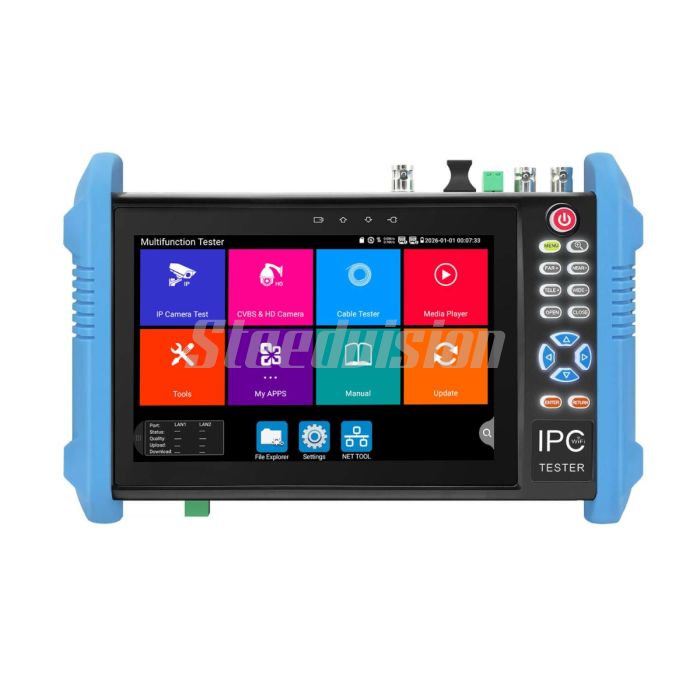

IPC-9800ADHS Pro+ 8K IP Camera Tester with SDI , SFP and POE++ 90W

7" IPS Touchscreen CCTV Tester: 8K 32MP IP & 8MP TVI/CVI/AHD/SDI + CVBS Test | HDMI Input & Output / VGA Input / Analog Video Output | PoE++ 90W  | Built-in Wi-Fi | Gigabit SFP Port | Optional Cable Tracker

In stock

SKU
IPC-9800ADHS-PRO+
$399.99
$339.99
Deliver to:
Free Shipping
Shipping options not yet available online. 💬 Chat with us for delivery details.

IPC-9800ADHS Pro CCTV camera tester supports IP cameras up to 8K, 32MP, and 12MP with PoE++ and a maximum power output of 90W. It also supports coaxial HD cameras (CVI, TVI, AHD, SDI, CVBS) up to 4K and 8MP. The device includes a variety of test tools such as IP discovery, Wi-Fi, PoE, VGA input, HDMI I/O, RJ45 TDR cable tester, network test tools, and 1-channel SFP.

IPC-9800ADHS Pro

◉ 7inch Max 8K 32MP 4K 12MP IPC Test

◉ Max 4K 8MP TVI/CVI/AHD/SDI Coaxial Test

◉ POE++ Max 9OW Power Output

◉ 1CF SFP Module Interface

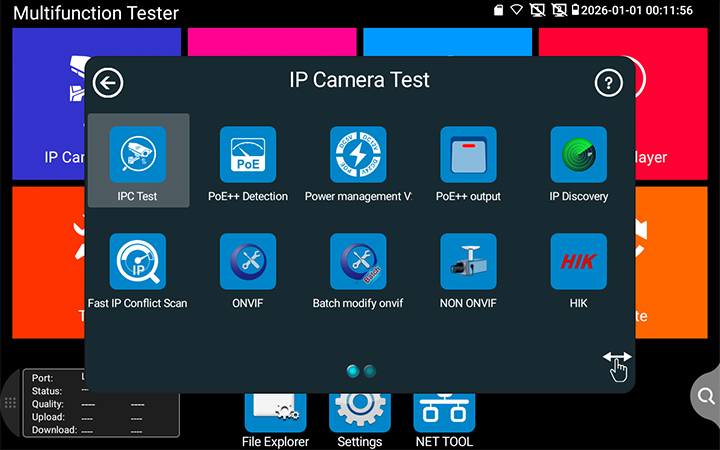

IP Camera Test Suite

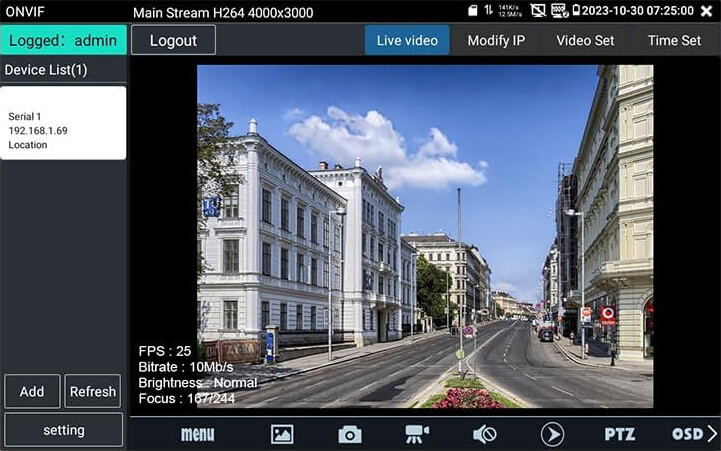

Deliver 90W PoE++ power, resolve IP conflicts instantly, and batch-activate HIK/DH cameras on the fly. With full ONVIF support and built-in browsers (Chrome/Firefox), this all-in-one suite handles complete IP camera setup right from your hands.

IP Cameras Test Suite

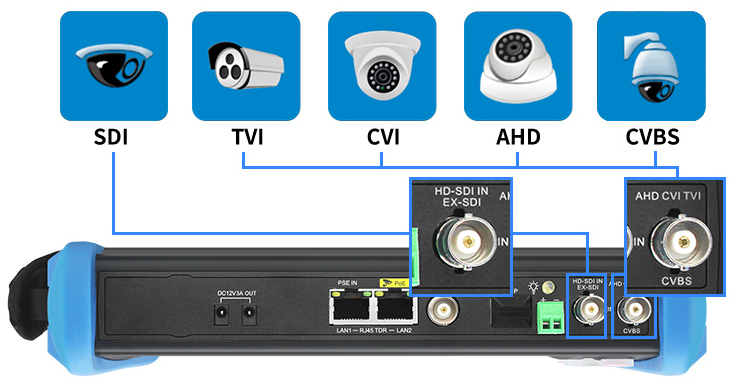

Auto HD & Coaxial Camera Test

Auto HD app, auto recognize HD coax camera type and resolution, 8MP TVI/AHD/CVl/SDl test, 3840 x 2160P 15 FPS, 4x zoom, video record & playback, coaxial PTZ control & call OSD menu.CVBS camera test, NTSC/PAL (Auto adapt).

Resolution comparison table

HD coaxial cameratype/ Resolution 720P 1080P 3MP 4MP 5MP 6MP 4K(8MP)
CVI 4.0 1280x720P 25/30/50/60 FPS 1920 x1080P 25/30 FPS \ 2560x1440P 25/30 FPS \ 2880x1920
 20FPS		 3840x2160P 12.5/15 FPS
TVI 5.0 1280x720P 25/30/50/60 FPS 1920 x1080P 25/30 FPS 2048 x1536P 18/25/30 FPS 2688x1520P  15FPS 2560x1440P 15/25/30 FPS 2592 x1944P 12.5120FPS 2960x1660/20FPS \ 3840x2160P 12.5/15 FPS
AHD 4.0 1280x720P 25/30 FPS 1920 x1080P 25/30 FPS 2048 x1536P 18/25/30 FPS 2560x1440P 15/25/30 FPS \ \ 3840x2160P 15 FPS

NOTE: only TVl camera support coaxial audio, others type cameras doesn't support coaxial audio.

SDl type/Resolution 720P 1080P 1080i 4MP 4K(8MP)
HD-SDI 1280x720P 25/30/50/60 FPS 1920 x1080P 25/30/50/60 FPS 1920 x1080i 50/60 FPS
EX-SDI-V2.0
(support coaxial control)		 1280x720P 25/30/50/60 FPS 1920 x1080P 25/30/50/60 FPS 1920 x1080i 50/60 FPS 4MP-2560x1440P
25/30 FPS		 8MP-3840x2160P 25/30 FPS
EX-SDI-V1.0 1280x720P 25/30/50/60 FPS 1920 x1080P 25/30 FPS 1920 x1080i 50/60 FPS \ \
3G-SDI \ 1920 x1080P 50/60 FPS \ \ \

POE++ Output

Support lEEE802.3af/at, Hi-PoE Max 9OW power output Provide power supply for the high-power PTZ camera.

Please Note: Please do not connect non-standard POE devices to avoid damaging the POE interface.

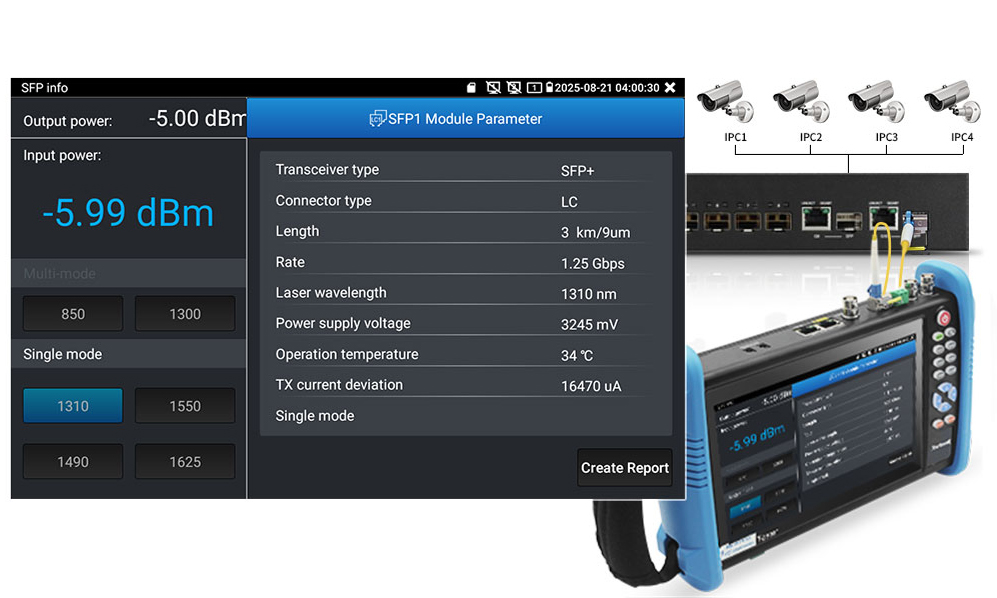

SFP Module Interface

1ch SFP optical fiber module interface. Support insert Gigabit SFP optical fiber module, foroptical fiber optic communication system and network testing

Supported languages:
English, Polski, Italiano, 한국어, Русский, Español, 日本語, Français, Deutsch, Türkçe, Português, Tiếng Việt, and more.

Brand Steedvision
Model IPC-9800ADHS Pro+
CPU/RAM/ROM 4-core 2.0GHz/1GB(DDR)/8GB(EMMC)
Operating system Android 11.0
Display 7 inch IPS touch screen, 1280*800 resolution
Network camera test

IP camera test Max 8K 32MP

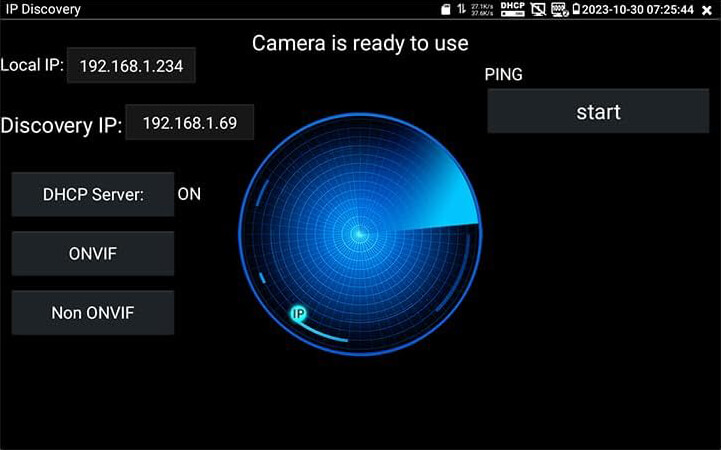

◉IP Discovery/ONVIF/IPC test /RTSP play /Client APK
◉Rapid Video, Auto view the video, create testing report
◉Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
◉Dahua test tool, Dahua camera test, modify the user name, password and IP parameters
◉IP & CVBS test at the same time, converter test from analog to digital with dual test window
CCTV camera test

CVBS
◉1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
◉Analog video level meter, peak video signal level, SYNC signal level, CVBS color bar chroma level measurement
◉PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
◉CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable
Coaxial HD test
◉8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio
◉8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu
◉8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu
◉8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu
Video input

◉VGA input: 1 channel VGA input, support 1920x1080P 60fps
◉HDMI input: 1 channel HDMI input, support 4K 3840x2160P 30fps
Video output

◉HDMI output: 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details)
◉Analog Video out: color bar generator：Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
Power output

◉USB DC5V/2A power output, as a power bank
◉DC12V/3A power output ,supply temporarily power for the camera
◉DC24V/2A power output ,supply temporarily power for the speed dome camera
◉Standard PoE power output, DC48V, max power 25.5W
◉55V PoE++ power output power, max power 90W (NEW)
Cable test

◉Cable tracer(Optional function)：N/A
(This feature requires additional purchase of a cable tracer WT255.)
◉UTP cable test：Test UTP cable connection status and display on the screen. Read the number on the screen
◉RJ45 TDR cable test：Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M.
Digital Multimeter(DMM)

N/A
Optical power meter(OPM)

N/A
Visual fault locator(VFL)

N/A
TDR cable test

N/A
Network funtion

◉Network interface: RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive
◉Wi-Fi: Built in WIFI, 2.4GHz, speeds150Mbps
◉Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test
◉ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing (NEW)
Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Other funtion

◉Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
◉Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal
◉Power management: View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input.
◉Drop-down menu: You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface
◉Tester Play: screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone)
Power supply DC12V/2A
Battery

Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh
After charging 3 to 4hours, normal working time 15 hours
Language

English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.
Working environment

◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉)
◉Working Humidity: 30% to 90%
Dimension/Weight

◉Tester: 240x135x35mm(9.4x5.3x1.4inch) / 980g(2.16lbs)
◉Package: 320x290x100mm(12.6x11.4x3.94) / 2110g(4.65lbs)
Package included

1 Camera tester
1 Tool Bag
1 Power adapter
3 Shoulder Strap
1 TDR test cable
1 Power output cable
1 BNC video cable
1 RS485 control cab
1 Audio test cable
