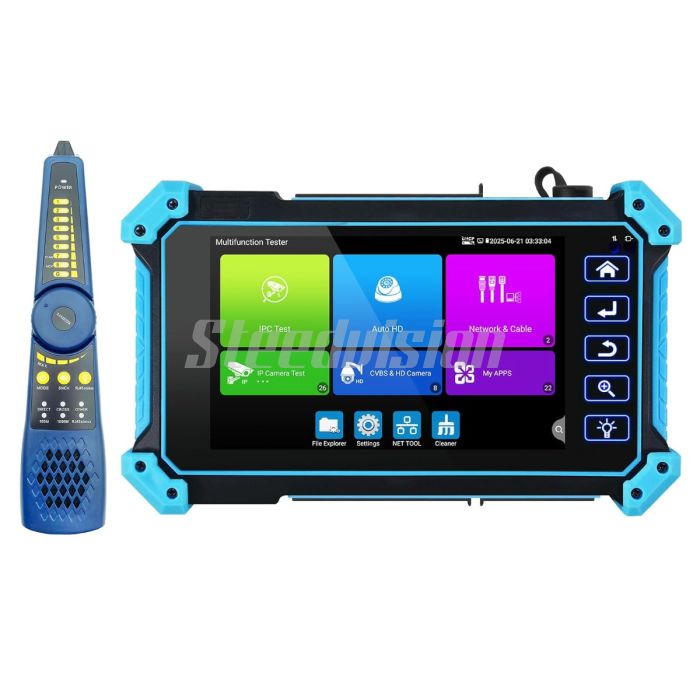

IPC-5100C Plus CCTV camera tester supports IP cameras up to 8K, 32MP, and 12MP with PoE power output. It also supports coaxial HD cameras (CVI, TVI, AHD, CVBS) up to 4K and 8MP. The device includes a variety of test tools such as IP discovery, Wi-Fi, HDMI and VGA input, RJ45 TDR cable tester, network test tools, and Digital Cable Tracer.
◉ 5.4 Inch IPC Touch Screen
◉ 8K Video Display via Mainstream
◉ 8MP TVI/CVI/AHD Camera Test
◉ DC12V3A, DC48V POE Power Output
◉ 4K 30FPS HDMI Input and VGA Input
◉ Digital Cable Tracer
Deliver 90W PoE++ power, resolve IP conflicts instantly, and batch-activate HIK/DH cameras on the fly. With full ONVIF support and built-in browsers (Chrome/Firefox), this all-in-one suite handles complete IP camera setup right from your hands.
Auto HD app, auto recognize HD coaxial camera type and resolution, 8MP TVI/AHD/CVI/SDl test,3840 x 2160P 15 FPS,
CVBS camera test,NTSC/PAL(Auto adapt).
| HD coaxial cameratype/ Resolution | 720P | 1080P | 3MP | 4MP | 5MP | 6MP | 4K(8MP) |
| CVI 4.0 | 1280x720P 25/30/50/60 FPS | 1920 x1080P 25/30 FPS | \ | 2560x1440P 25/30 FPS | 2592x1944P 20FPS |
2880x1920P 20FPS |
3840x2160P 12.5/15 FPS |
| TVI 5.0 | 1280x720P 25/30/50/60 FPS | 1920 x1080P 25/30 FPS | 2048 x1536P 18/25/30 FPS | 2688x1520P 15FPS 2560x1440P 15/25/30 FPS | 2592 x1944P 12.5120FPS 2960x1660/20FPS | \ | 3840x2160P 12.5/15 FPS |
| AHD 4.0 | 1280x720P 25/30 FPS | 1920 x1080P 25/30 FPS | 2048 x1536P 18/25/30 FPS | 2560x1440P 15/25/30 FPS | \ | \ |
3840x2160P 15 FPS |

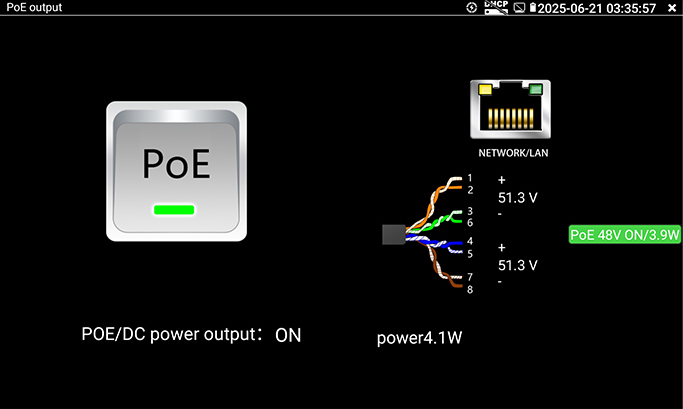

Power output for camera, and detect camera power at the same time.
Supported languages:
English, Polski, Italiano, 한국어, Русский, Español, 日本語, Français, Deutsch, Türkçe, Português, Tiếng Việt, and more.
| Brand | Steedvision |
|---|---|
| Model | IPC-5100C Plus |
| Display | 5.4 inch IPS touch screen, 1920*1152 resolution |
| Network camera test | IP camera test Max 8K 32MP |
| CCTV camera test | HD Coaxial test: |
| Video input | VGA input: 1 channel VGA input, support 1920x1080P 60fps |
| Power output | POE Power Output: 48V POE power output, max power 25.5W. |
| Cable test | Digital Cable tracer: UTP cable test: RJ45 TDR cable test: |
| Network funtion | Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test Wi-Fi: Built in WIFI, speeds 150M, Only support 2.4GHz. display wireless camera image, create WIFI hotspot. |
| Audio test | 1 channel audio signal input, test whether sound normal. |
| Other funtion | Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal Power management: View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. Drop-down menu: You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface Tester Play: screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) |
| Power supply | DC 12V/1A. |
| Battery | Built-in 7.4V Lithium polymer battery, 3350mAh, 24.79W/h |
| Language | English, Polski, Italiano, 한국어, Русский, Español, 日本語, Français, Deutsch, Türkçe, Português, Tiếng Việt, etc. |
| Working environment | -10℃ to +50℃ (14℉ to 122℉). |
| Dimension/Weight | 183mm x 110mm x 36.5mm / Approx. 0.32kg (Portable wrist-mounted design). |
| Package included | 1x Camera Tester |
