IPC-9800ADH Pro 8K Security Camera Tester

In stock

SKU: IPC-9800ADH-PRO+

$479.00

$319.00

Deliver to:

Free Shipping

Shipping options not yet available online. 💬 Chat with us for delivery details.

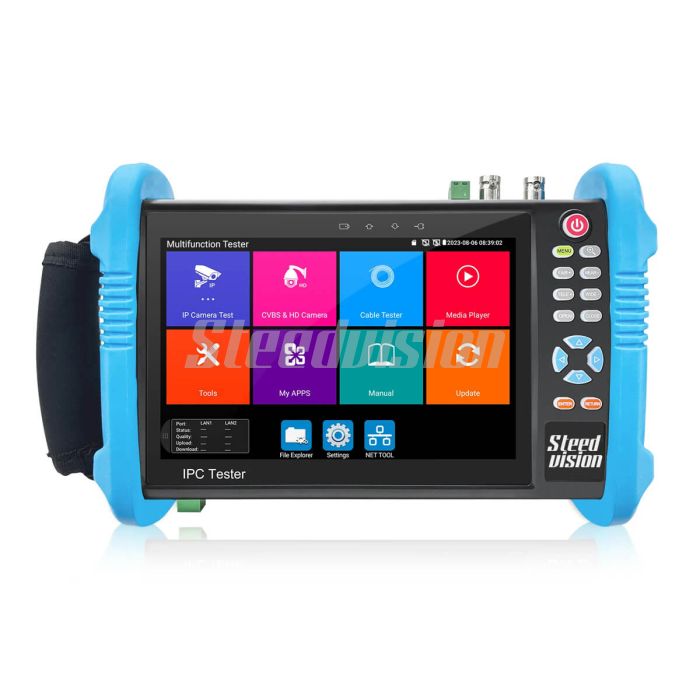

The Steedvision IPC-9800ADH Pro is a versatile and advanced camera tester tailored for professional security technicians. Powered by Android 11.0 and equipped with a 7-inch IPS touchscreen, it supports 8K 32MP IP and 8MP coaxial camera testing, plus 4K HDMI input/output and PoE power supply capabilities. Key features include one-click testing for Hikvision and Dahua cameras, PTZ control, comprehensive network diagnostics, and cable testing functions. This all-in-one device simplifies camera installation, system maintenance, and troubleshooting, making it an indispensable tool for modern security applications. Cable tracker is optional.

9800 Pro Series Feature Comparison

	IPC-9800 Pro	IPC-9800ADH Pro	IPC-9800ADHS Pro	IPC-9800CMADHS Pro	IPC-9800MOVTADHS Pro
IP Camera	✓	✓	✓	✓	✓
CVBS Camera	✓	✓	✓	✓	✓
AHD Camera	✗	✓	✓	✓	✓
CVI Camera	✗	✓	✓	✓	✓
TVI Camera	✗	✓	✓	✓	✓
SDI Camera	✗	✗	✓	✓	✓
RS485	✓	✓	✓	✓	✓
HDMI input	✗	✓	✓	✓	✓
HDMI output	✓	✓	✓	✓	✓
Cable tracter	✗	✗	✗	✓	✓
TDR cable test	✗	✗	✗	✗	✓
Digtal multi-meter	✗	✗	✗	✓	✓
Optical power meter	✗	✗	✗	✗	✓
Visual fault locator	✗	✗	✗	✗	✓
Analog level test	✗	✗	✗	✗	✓
	Buy Now	Buy Now	Buy Now	Buy Now	Buy Now

9800 Pro Series

Brand	Steedvision
Model	IPC-9800ADH Pro+
CPU/RAM/ROM	4-core 2.0GHz/1GB(DDR)/8GB(EMMC)
Operating system	Android 11.0
Display	7 inch IPS touch screen, 1280*800 resolution
Network camera test	IP camera test Max 8K 32MP IP Discovery/ONVIF/IPC test /RTSP play /Client APK Rapid Video, Auto view the video, create testing report Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters Dahua test tool, Dahua camera test, modify the user name, password and IP parameters IP & CVBS test at the same time, converter test from analog to digital with dual test window
CCTV camera test	CVBS 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) Analog video level meter, peak video signal level, SYNC signal level, CVBS color bar chroma level measurement PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable Coaxial HD test 8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio 8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu 8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu Don't support SDI camera test
Video input	VGA input: 1 channel VGA input, support 1920x1080P 60fps HDMI input: 1 channel HDMI input, support 4K 3840x2160P 30fps
Video output	HDMI output: 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details) Analog Video out: color bar generator：Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
Power output	◉USB DC5V/2A power output, as a power bank ◉DC12V/3A power output ,supply temporarily power for the camera ◉DC24V/2A power output ,supply temporarily power for the speed dome camera ◉Standard PoE power output, DC48V, max power 25.5W ◉55V PoE++ power output power, max power 90W (NEW)
Cable test	Cable tracer*(Optional function)：N/A (This feature requires additional purchase of a cable tracer WT255.) UTP cable test：Test UTP cable connection status and display on the screen. Read the number on the screen RJ45 TDR cable test：Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M.
Digital Multimeter(DMM)	N/A
Optical power meter(OPM)	N/A
Visual fault locator(VFL)	N/A
Video level test	N/A
TDR cable test	N/A
Network funtion	◉Network interface: RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive ◉Wi-Fi: Built in WIFI, 2.4GHz, speeds150Mbps ◉Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test ◉ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing (NEW)
Audio test	1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Other funtion	Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal Power management: View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. Drop-down menu: You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface Tester Play: screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone)
Power supply	DC12V/2A
Battery	Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh After charging 3 to 4hours, normal working time 15 hours
Language	English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.
Working environment	Working Temperature: -10℃ to +50℃ (14℉ to 122℉) Working Humidity: 30% to 90%
Dimension/Weight	Tester: 240x135x35mm(9.4x5.3x1.4inch) / 965g(2.12lbs) Package: 320x290x100mm(12.6x11.4x3.94) / 2090g(4.61lbs)
Package included	1 x Camera tester 1 x Tool Bag 1 x Power adapter 3 x Shoulder Strap 1 x TDR test cable 1 x Power output cable 1 x BNC video cable 1 x RS485 control cab 1 x Audio test cable
