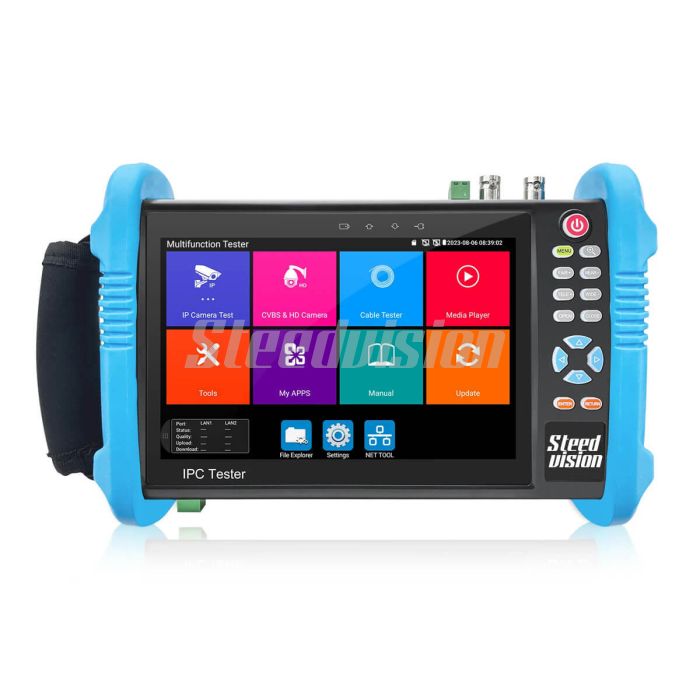

IPC-9800 Pro+ 8K Security Camera Tester

In stock

SKU: IPC-9800-PRO+

$325.99

$239.99

Deliver to:

Free Shipping

Shipping options not yet available online. 💬 Chat with us for delivery details.

The Steedvision IPC-9800 Pro is the foundational model in the 9800 Pro series, designed for professional-grade performance. It runs on Android 11.0 and features a 7-inch IPS touchscreen, an 8K 32MP IP camera testing function, and CVBS camera testing capabilities. With support for 4K HDMI output, PoE power supply, network diagnostics, and advanced tools like Hikvision and Dahua one-click testing, this device is an excellent choice for efficient camera setup and network troubleshooting. Cable tracter is optional.

9800 Pro Series Feature Comparison

	IPC-9800 Pro	IPC-9800ADH Pro	IPC-9800ADHS Pro	IPC-9800CMADHS Pro	IPC-9800MOVTADHS Pro
IP Camera	✓	✓	✓	✓	✓
CVBS Camera	✓	✓	✓	✓	✓
AHD Camera	✗	✓	✓	✓	✓
CVI Camera	✗	✓	✓	✓	✓
TVI Camera	✗	✓	✓	✓	✓
SDI Camera	✗	✗	✓	✓	✓
RS485	✓	✓	✓	✓	✓
HDMI input	✗	✓	✓	✓	✓
HDMI output	✓	✓	✓	✓	✓
Cable tracter	✗	✗	✗	✓	✓
TDR cable test	✗	✗	✗	✗	✓
Digtal multi-meter	✗	✗	✗	✓	✓
Optical power meter	✗	✗	✗	✗	✓
Visual fault locator	✗	✗	✗	✗	✓
Analog level test	✗	✗	✗	✗	✓
	Buy Now	Buy Now	Buy Now	Buy Now	Buy Now

Brand	Steedvision
Model	IPC-9800 Pro+
CPU/RAM/ROM	4-core 2.0GHz/1GB(DDR)/8GB(EMMC)
Operating system	Android 11.0
Display	7 inch IPS touch screen, 1280*800 resolution
Network camera test	IP camera test Max 8K 32MP ◉IP Discovery/ONVIF/IPC test /RTSP play /Client APK ◉Rapid Video, Auto view the video, create testing report ◉Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters ◉Dahua test tool, Dahua camera test, modify the user name, password and IP parameters ◉IP & CVBS test at the same time, converter test from analog to digital with dual test window
CCTV camera test	CVBS ◉1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) ◉Analog video level meter, peak video signal level, SYNC signal level, CVBS color bar chroma level measurement ◉PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc ◉CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable Coaxial HD test ◉Don't support CVI camera test ◉Don't support TVI camera test ◉Don't support AHD camera test ◉Don't support SDI camera test
Video input	N/A
Video output	◉HDMI output: 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details) ◉Analog Video out: color bar generator：Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
Power output	◉USB DC5V/2A power output, as a power bank ◉DC12V/3A power output ,supply temporarily power for the camera ◉DC24V/2A power output ,supply temporarily power for the speed dome camera ◉Standard PoE power output, DC48V, max power 25.5W ◉55V PoE++ power output power, max power 90W (NEW)
Cable test	◉Cable tracer*(Optional function)：N/A (This feature requires additional purchase of a cable tracer WT255.) ◉UTP cable test：Test UTP cable connection status and display on the screen. Read the number on the screen ◉RJ45 TDR cable test：Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M.
Digital Multimeter(DMM)	N/A
Optical power meter(OPM)	N/A
Visual fault locator(VFL)	N/A
Video level test	N/A
TDR cable test	N/A
Network funtion	◉Network interface: RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive ◉Wi-Fi: Built in WIFI, 2.4GHz, speeds150Mbps ◉Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test ◉ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing (NEW)
Audio test	1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Other funtion	◉Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back ◉Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal ◉Power management: View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. ◉Drop-down menu: You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface ◉Tester Play: screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone)
Power supply	DC12V/2A
Battery	Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh After charging 3 to 4hours, normal working time 15 hours
Language	English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.
Working environment	◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉) ◉Working Humidity: 30% to 90%
Dimension/Weight	◉Tester: 240x135x35mm(9.4x5.3x1.4inch) / 920g(2.03lbs) ◉Package: 320x290x100mm(12.6x11.4x3.94) / 2050g(4.52lbs)
Package included	1 Camera tester 1 Tool Bag 1 Power adapter 3 Shoulder Strap 1 TDR test cable 1 Power output cable 1 BNC video cable 1 RS485 control cab 1 Audio test cable
